Product Description:
This motor driver board is designed to work with sensorless brushless DC motors, providing a reliable and high-performance solution for your motor control needs. With a motor speed pulse output signal of less than 5mA, this controller is perfect for a wide range of applications, from industrial equipment to robotics and more.
The controller features normal ventilation for cooling, ensuring that it can operate reliably and efficiently even in harsh environments. The operating temperature range of -20°C to 85°C ensures that it can operate in a wide range of temperatures, making it ideal for use in a variety of applications.
The BLDC Motor Driver Board features a power port with connections for P+, P-, U, V, and W, making it easy to connect to your motor and start controlling it right away. With its compact size and easy-to-use design, this motor driver board is the perfect solution for controlling your brushless DC motor.
Features:
- Product Name: Sensorless BLDC Motor Driver
- Motor Speed Pulse Output Signal: Less than 5mA
- Shape: Rectangle
- Duty Cycle: 0-100%
- Sensing Method: Sensorless
- Product Type: Controller for BLDC Motor
- Also Known As: Brushless Motor Driver, 3 Phase Brushless Sensorless Motor Driver
Technical Parameters:
| Control Ports | Z/F, EL, BK, VR, FG, GND, ALM, 5V |
| Cooling | Normal ventilation |
| Max Current | 60A |
| PWM Speed Control | 1-20kHz |
| Number Of Phases | 3 |
| Anti-electromotive Force Detection | Dependent on motor line length |
| Motor Type | DC Motor |
| Shape | Rectangle |
| Operating Temperature Range | -20°C To 85°C |
| Application | Drive Hall-free three-phase brushless DC motors |
Application notes:
1. Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2. Drive Hall-free three-phase brushless DC motors, but not all three-phase brushless DC motors can be used directly. If there is poor driving effect (such as startup jitter, reverse rotation, excessive motor high-speed current, unstable speed, and reduced efficiency, cannot start after loading) Customers can adjust the resistance and capacitance of the driving board according to the actual situation to achieve the best driving effect.
3. JYQD_6.02 can drive motors with a power of less than 500W. It does not require forced cooling but needs to ensure normal ventilation.
4. The 5V output port on the driver is prohibited from connecting to external electrical equipment. It is only suitable for connecting external potentiometers and switches to this board for speed regulation and reversal.
5. The FG port on the driver board is the motor speed pulse output signal, and the output current is less than 5mA.
Support and Services:
The Sensorless BLDC Motor Driver product technical support and services include:
- Assistance with installation, configuration, and operation of the product
- Troubleshooting and diagnosis of any issues or errors
- Recommendations for optimal performance and usage of the product
- Access to online resources such as user manuals and technical documentation
- Technical consultation services for more complex issues or projects
Packing and Shipping:
Product Packaging:
- One Sensorless BLDC Motor Driver
- User Manual
Shipping:
- Standard shipping time is 5-7 business days
- Expedited shipping options available at checkout
FAQ:
Here are the frequently asked questions and answers for JUYI Sensorless BLDC Motor Driver:
Q: What is the model number of this product?
A: The model number of this product is JYQD-V6.02.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
Q: Where is this product made?
A: This product is made in China.
Q: What is the price of this product?
A: The price of this product is negotiable.
Q: What are the accepted payment terms for this product?
A: The accepted payment terms for this product are T/T, L/C, and Paypal.
Q: What is the supply ability for this product?
A: The supply ability for this product is 1000 sets per day.
Q: What is the packaging for this product?
A: The packaging for this product is PE bag+carton.
Q: What is the delivery time for this product?
A: The delivery time for this product is 5-10 days.

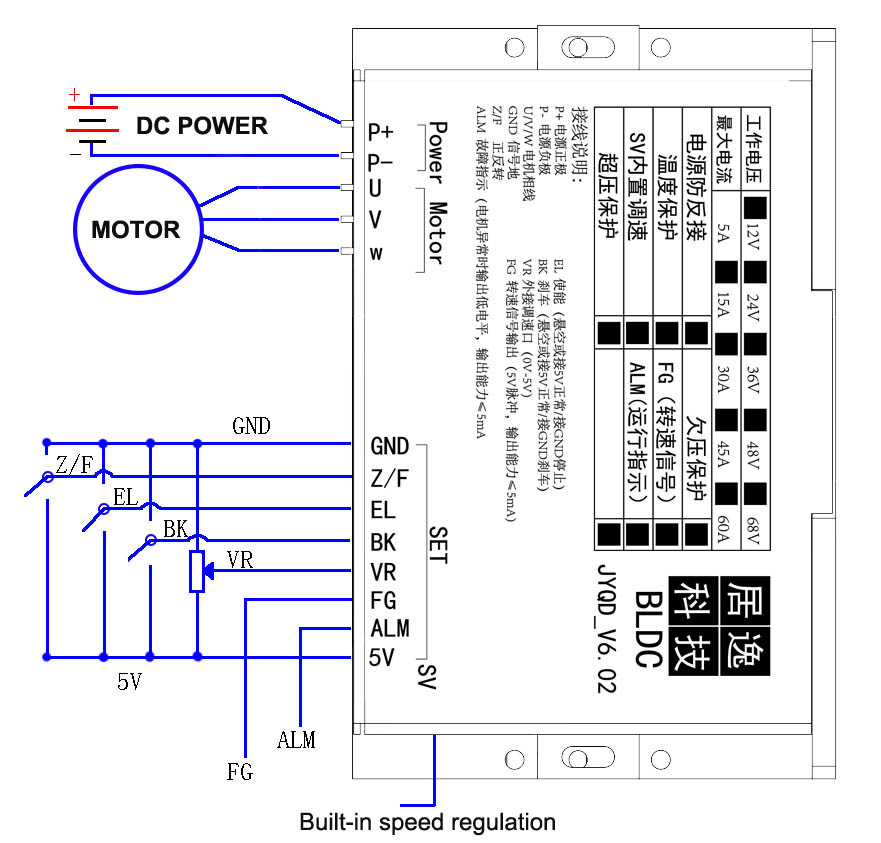

Wiring Diagram

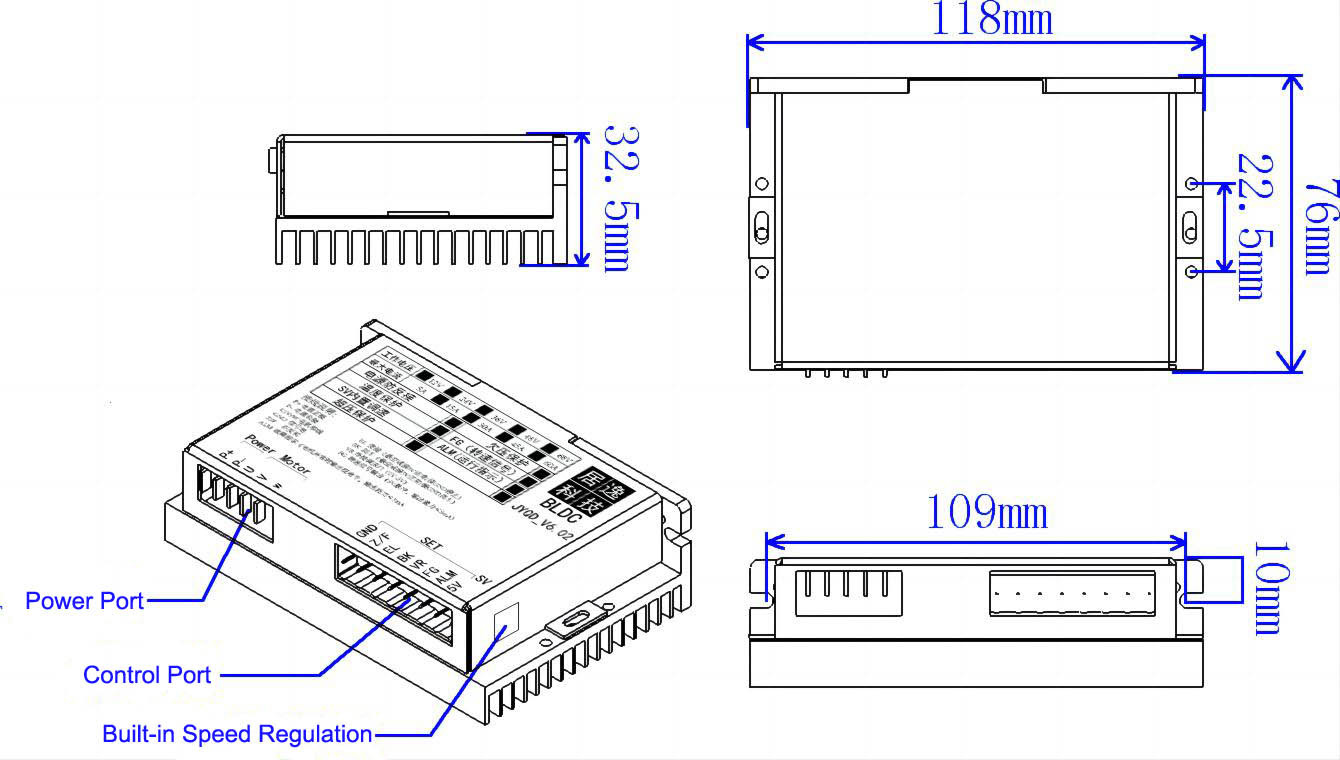

Dimensional Diagram
DOWN LOAD USER MANUAL OF JYQD-V6.02
JYQD-6.02--English.pdf
