JY2605M Dual N Channel Enhancement Mode Power Surface Mount MOSFET For BLDC Motor Driver

  • 1
  • 2

Brand Name : JUYI

Model Number : JY2605M

Place of Origin : China

MOQ : 10set

Price : Negotiable

Payment Terms : L/C,T/T,Paypal

Supply Ability : 1000sets/day

Delivery Time : 5-8 working days

Packaging Details : PE bag+ carton

Drain-Source Voltage : 60 V

Gate-Source Voltage : ±20V

Pulsed Drain Current : 185A

Maximum Power Dissipation : 65W

APPLICATIONS : Motor drive for 12V-24V Systems

Contact Now

JY2605M Dual N Channel Enhancement Mode Power MOSFET For BLDC Motor Controller
GENERAL DESCRIPTION
The product utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.
FEATURES
● 60V/50A, RDS(ON) =14mΩ@VGS=10V(typical)
● Fast switching and reverse body recovery
● Fully characterized avalanche voltage and current
● Excellent package for good heat dissipation
APPLICATIONS
● Power Switching application
● Synchronous rectification
● Motor drive for 12V-24V Systems

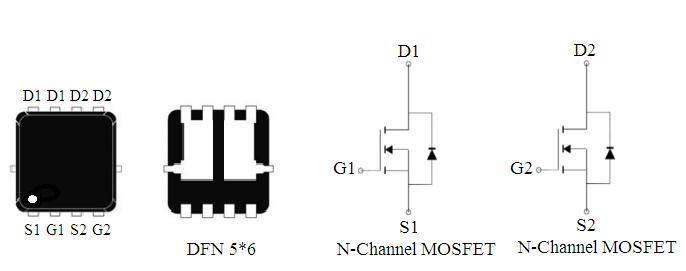

PIN DESCRIPTION
JY2605M Dual N Channel Enhancement Mode Power Surface Mount MOSFET For BLDC Motor Driver
Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
Symbol Parameter Limit

Unit
VDS Drain-Source Voltage

60

 V
VGS Gate-Source Voltage

±20

 V
ID

Continuous Drain

Current

 Tc=25ºC 50 A
Tc=100ºC 35

IDM

 Pulsed Drain Current 185 A

PD

 Maximum Power Dissipation 65 W

TJ TSTG

 Operating Junction and Storage Temperature Range -55 to +175 ºC

RθJC

 Thermal Resistance-Junction to Case 2.3 ºC/W

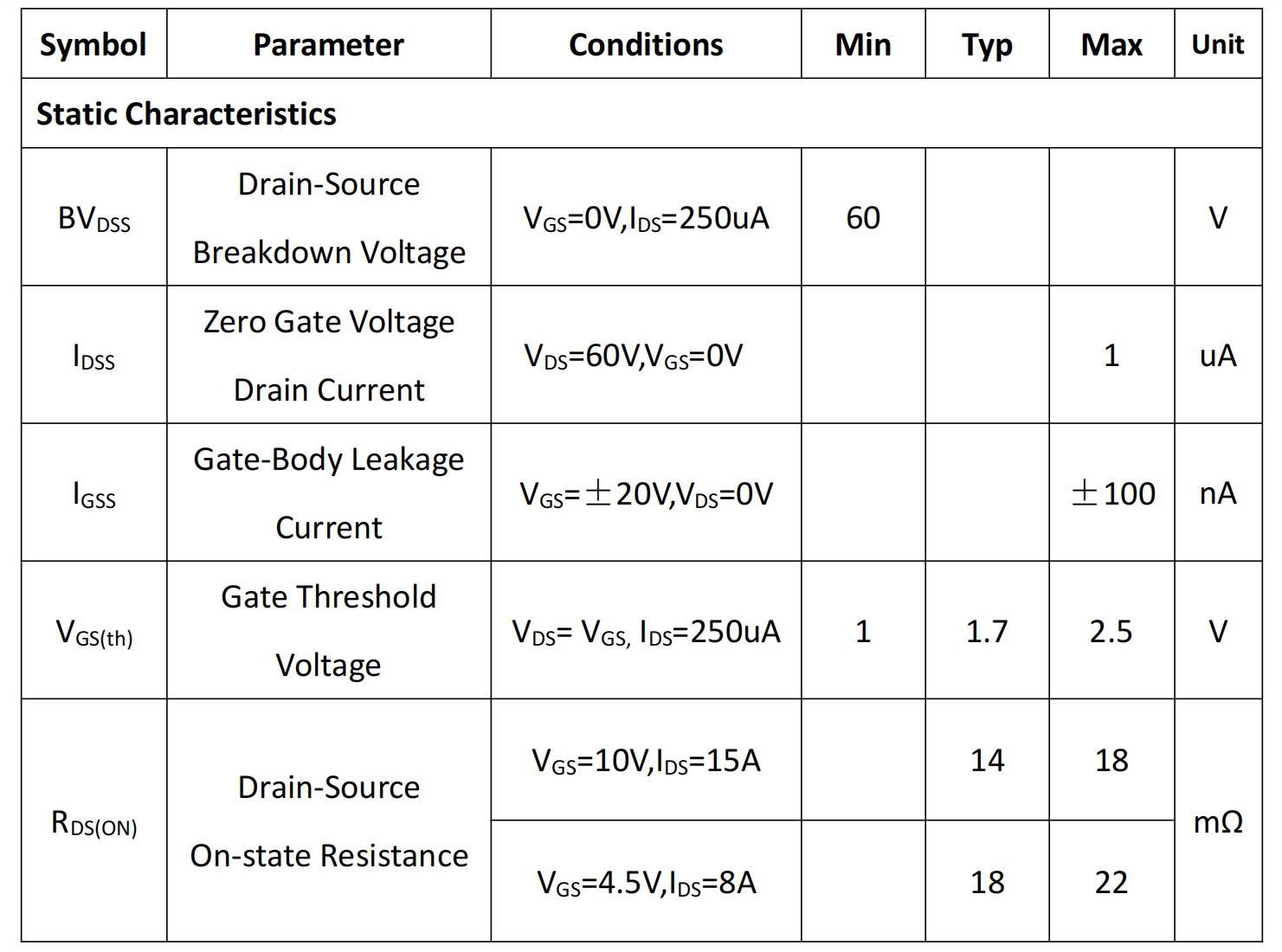

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
JY2605M Dual N Channel Enhancement Mode Power Surface Mount MOSFET For BLDC Motor Driver
DOWNLOAD THE USER MANUAL OF JY2605M
